Few stadium features make engineers grin quite like the retractable field tray at Allegiant Stadium. It is one of those ideas that sounds simple enough over a coffee, then turns into a masterpiece involving thousands of tonnes of steel, precision rail systems, advanced irrigation and enough electrical equipment to power a small neighbourhood.
Most fans barely notice it. They arrive, admire the immaculate grass, watch the Las Vegas Raiders run onto the field, and head off wondering whether they should have ordered one more overpriced hot dog.
What they rarely realise is that the entire playing surface has effectively gone for a drive before kickoff.
The retractable field tray is arguably the single most important engineering feature inside Allegiant Stadium. Without it, the venue could never balance the competing demands of the NFL, concerts, college football, international football, monster truck shows and countless other events.
Why Allegiant Stadium Needed a Retractable Field
Las Vegas is not exactly famous for gentle sunshine and predictable weather.
Temperatures regularly exceed 40°C during summer, yet the city also experiences surprisingly cool winters. More importantly, Allegiant Stadium has a translucent roof and enclosed sides rather than being fully open to the elements.
Natural grass needs sunlight.
NFL players also overwhelmingly prefer playing on quality natural turf because it generally offers better traction, a more forgiving surface and potentially reduces certain lower limb stresses compared with some artificial surfaces, although sports medicine research continues to debate exactly how significant those differences are.
The designers faced an awkward challenge.
They wanted:
- Natural grass for Raiders games
- A climate-controlled indoor stadium
- Maximum flexibility for non-football events
- A surface capable of remaining healthy throughout the season
The solution was remarkably clever.
Instead of moving the roof, they move the grass.
How the Retractable Field Tray Works
At the heart of the system sits an enormous steel tray measuring approximately 550 feet long and 240 feet wide.
The entire structure weighs roughly 19 million pounds, or over 8,600 tonnes once the grass, soil, drainage systems and supporting framework are included.

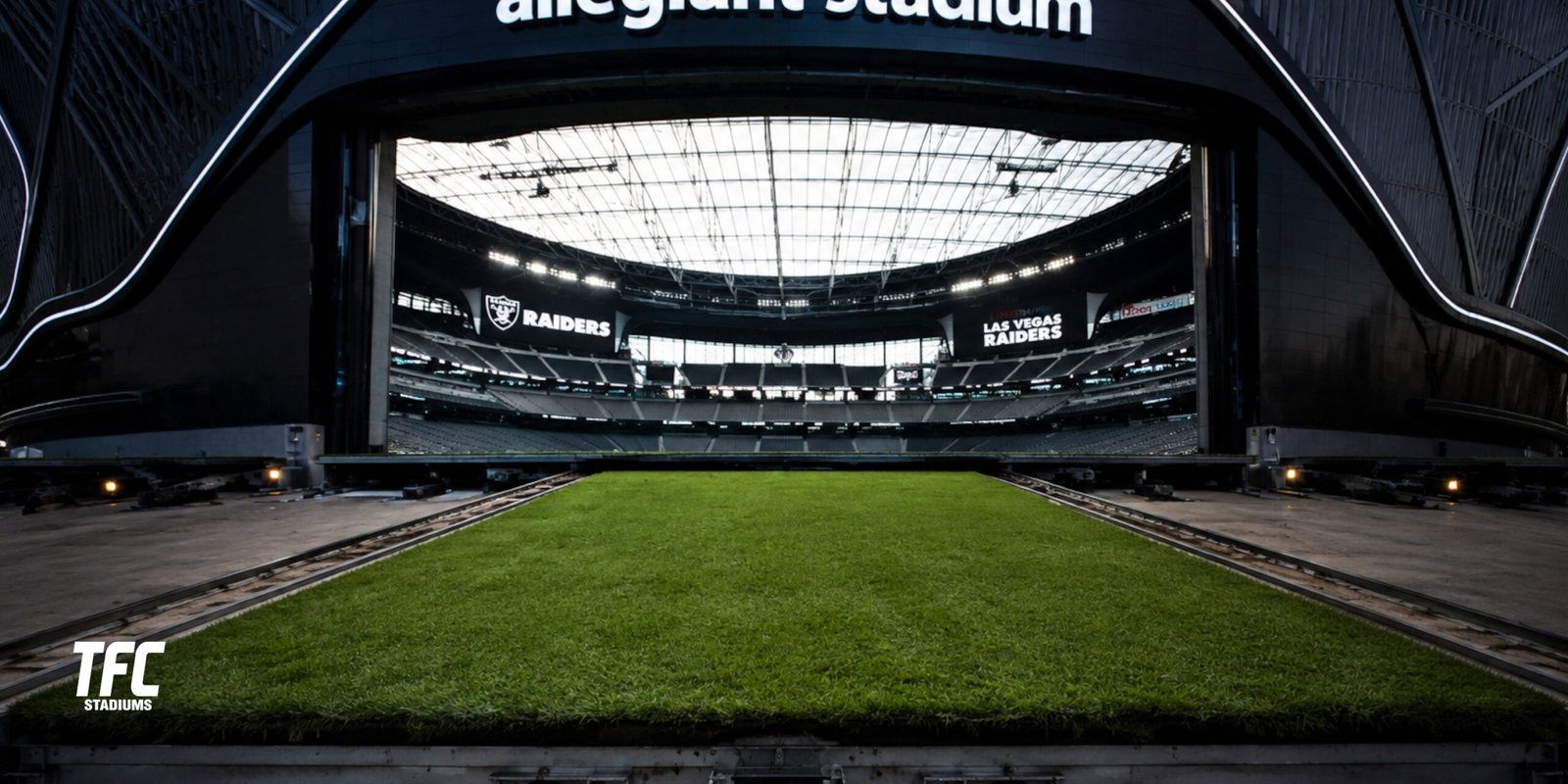

Rather than being permanently installed inside the stadium, the tray rolls outside the building whenever the field needs natural sunlight.
The movement takes place along a set of precision steel rails using 72 electric motors.
Although the tray weighs as much as several fully loaded jumbo jets, the engineering distributes that weight remarkably efficiently.
The complete journey takes approximately 90 minutes.
When the field reaches its outdoor position, the grass receives:
- Natural sunlight
- Fresh air circulation
- Regular irrigation
- Groundskeeping maintenance
- Fertiliser treatments
- Mowing
Essentially, the football field spends much of its week outside before returning indoors ready for game day.
That feels wonderfully Las Vegas. Even the grass has a better social life than most people.
Why Natural Grass Matters
The Raiders insisted on a natural grass playing surface from the earliest stages of stadium planning.
The field consists primarily of Bermuda grass during warmer periods, with seasonal overseeding helping maintain quality throughout the NFL calendar.
Maintaining premium turf in Nevada presents obvious challenges.
Outside temperatures fluctuate dramatically, evaporation rates remain high and intense desert sunlight can stress grass if irrigation is poorly managed.
By allowing groundskeepers unrestricted outdoor access, the retractable tray makes routine maintenance significantly easier than trying to grow grass inside an enclosed stadium.
Ground crews can use conventional equipment instead of squeezing machinery through stadium tunnels and concourses.
That saves time while producing a more consistent playing surface.
A Stadium Built for More Than Football
The field tray is also central to Allegiant Stadium’s business model.
NFL teams play only a handful of home games each season.
A billion-dollar stadium sitting empty for most of the year makes accountants extremely nervous.
Because the field rolls outside, the stadium floor underneath becomes available for almost anything.
That includes:
- Major concerts
- Boxing events
- College football
- International football matches
- Corporate conventions
- Awards ceremonies
- Esports
- Monster truck events
Heavy staging equipment never needs to roll across the natural turf.
Instead, crews build directly on the protected concrete event floor while the grass remains safely outside.
That dramatically reduces damage and allows events to be scheduled much closer together.
The Engineering Behind the Movement
Moving thousands of tonnes accurately is not something achieved with enthusiasm alone.
Every motor must remain perfectly synchronised.
If one section travelled faster than another, enormous stresses could develop across the steel frame.
Sensors constantly monitor movement, alignment and speed.
The rail system was engineered with exceptionally tight tolerances despite supporting extraordinary weight.
The field effectively glides rather than lurches.
Watching time-lapse footage almost feels unsettling because something that massive should not move with such calm precision.
It is rather like watching your uncle parallel park an aircraft carrier.
Drainage and Irrigation
The grass is far more than a decorative green carpet.
Beneath the surface lies a sophisticated network of drainage pipes, irrigation systems and structural supports.
Water management remains critical because both overwatering and underwatering affect playing quality.
Groundskeepers monitor:
| System | Purpose |
|---|---|
| Irrigation | Maintains healthy moisture levels |
| Drainage | Prevents waterlogging |
| Root zone monitoring | Encourages consistent turf growth |
| Soil temperature management | Supports healthy grass throughout the season |
| Fertiliser programme | Maintains colour and durability |
Every element must continue functioning whether the field sits outdoors or inside the stadium.
Comparing Allegiant to Other Retractable Field Stadiums
Only a handful of major stadiums worldwide use fully retractable natural grass trays.
| Stadium | Country | Retractable Field |
|---|---|---|
| Allegiant Stadium | USA | Yes |
| State Farm Stadium | USA | Yes |
| Tottenham Hotspur Stadium | England | Separate retractable pitch system |
| Sapporo Dome | Japan | Moving grass field |
Each system solves a similar problem through slightly different engineering.
State Farm Stadium pioneered many concepts used in Arizona’s harsh climate.
Tottenham Hotspur took a different route by sliding a synthetic NFL surface underneath the natural football pitch.
Allegiant refined the American approach with larger capacity, more automation and integration into a modern entertainment venue.
Economic Value
The retractable tray is not simply an engineering curiosity.
It generates real financial value.
By separating the playing surface from event operations, Allegiant Stadium can host:
- More concerts
- More corporate events
- More sporting competitions
- Faster event changeovers
- Reduced turf replacement costs
Las Vegas depends heavily on tourism.
Every additional event attracts visitors who book hotels, dine in restaurants and spend money throughout the city.
The field tray quietly contributes to that wider economic ecosystem.
It is one of those rare pieces of engineering that pleases groundskeepers, event organisers, accountants and football players all at once.
That does not happen often.
Challenges and Maintenance
A moving field naturally requires constant attention.
Maintenance teams inspect:
- Electric motors
- Rail alignment
- Wheel assemblies
- Structural steel
- Hydraulic components
- Control software
- Safety systems
Routine servicing helps ensure the tray remains reliable across hundreds of movements over its operational life.
The system is designed with multiple layers of redundancy because nobody wants to explain to 65,000 fans why the football pitch became stuck halfway through the car park.
A Blueprint for Future Stadium Design
Allegiant Stadium represents a broader trend in modern sports architecture.
Owners increasingly want venues capable of generating revenue every week rather than only on matchdays.
Flexible infrastructure has become just as important as luxury suites or giant video boards.
Retractable roofs, movable seating and rolling fields all serve the same purpose.
They maximise usage while protecting the playing experience.
For the Raiders, the system delivers excellent natural grass inside a climate-controlled stadium.
For Las Vegas, it helps transform the venue into one of the busiest entertainment destinations in North America.
For engineers, it is simply a beautiful piece of problem-solving.
Most visitors leave remembering the game, the atmosphere or perhaps an unfortunate fourth-quarter collapse.
Meanwhile, the grass quietly rolls back outside, soaks up the Nevada sunshine and gets ready to do it all again.
