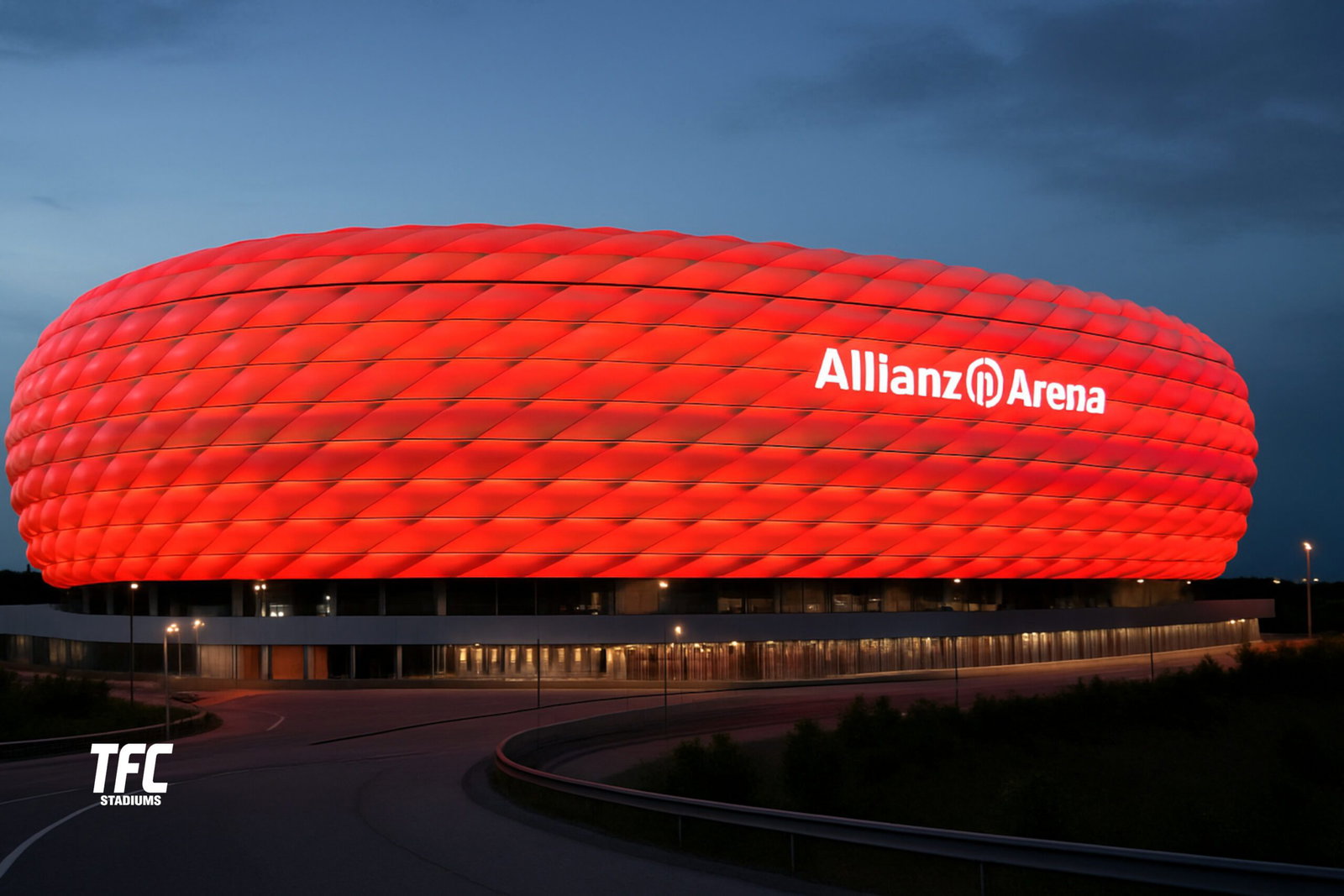

The Allianz Arena in Munich is one of the most recognisable stadiums in the world, largely due to its illuminated exterior. Its glowing façade is more than a striking feature for fans and television audiences; it represents a carefully engineered combination of architectural design and modern lighting technology.
The Façade Structure
The outer shell of the Allianz Arena consists of 2,784 inflated ETFE (ethylene tetrafluoroethylene) foil panels. ETFE is lightweight, durable, and highly transparent, making it ideal for both day and night display. Each panel can be lit individually, giving the arena flexibility to showcase colours, gradients, and dynamic sequences.
Lighting Technology
Originally, the stadium used fluorescent tubes to illuminate the panels, but these were replaced in 2014 with advanced LED technology. The switch to LEDs allowed for greater energy efficiency, sharper colours, and a much wider range of patterns.
Key features of the lighting system include:
- LED Control: Each ETFE panel is fitted with LED light sources that can be programmed independently.
- Colour Variety: The system supports 16 million colour shades, enabling everything from simple club colours to intricate light shows.
- Dynamic Sequences: The arena can transition smoothly between colours or display moving patterns across the façade.
Energy Efficiency
The upgrade to LEDs reduced the energy consumption of the lighting system by around 60 percent compared to the original installation. This not only lowered operating costs but also aligned the stadium with modern sustainability goals. LEDs also have a longer lifespan, meaning less maintenance is required.
Programming and Control
The lighting is managed by a central computer system that can schedule displays for matches, national holidays, or special events. For example, the stadium lights up in red for Bayern Munich matches, in white for the German national team, and in blue when hosting TSV 1860 Munich in earlier years. The same system allows for commemorative displays such as rainbow colours during Pride celebrations or national flags on significant days.
Visibility and Impact
Because the Allianz Arena is located near a major motorway, the glow of its façade serves not just as decoration but as a landmark for travellers approaching Munich. Its light displays have become part of the city’s identity, blending sports culture with urban design.
Legacy and Influence
Since its opening in 2005, the Allianz Arena has set a standard for stadium architecture. Its luminous shell inspired other venues around the world to incorporate dynamic LED lighting, showing how visual design can enhance both fan experience and civic presence.
