London Stadium has always had an awkward balancing act. It was built for the 2012 Olympics, designed around athletics, and then asked to become the home of West Ham United without losing its running track. That is rather like asking a family hatchback to become a Formula One car while keeping room for the shopping.
The answer, more than anything else, was the roof.
The original Olympic roof covered only part of the crowd and left huge sections of seating exposed. For athletics in summer, that was manageable. For Premier League football in February, with sideways rain arriving from the Lea Valley like an uninvited relative, it was far less appealing.
The post-Olympic redevelopment therefore centred on one major engineering challenge: extending the roof far enough to cover every seat, improve the noise inside the ground and make the stadium feel less like an athletics venue with a football pitch dropped in the middle.
Why the Roof Had to Change
The original Olympic Stadium roof had been designed with flexibility and cost in mind. It was light, relatively simple and only covered around two-thirds of the seating bowl.
Once West Ham moved in, that design quickly became one of the stadium’s biggest weaknesses.
Supporters complained about three things:
- The distance from the pitch
- The exposed seating areas
- The way sound escaped into the open bowl
The new roof tackled two of those problems immediately. It could not bring fans physically closer to the pitch, because the athletics track remained, but it could make the crowd feel closer by trapping more sound and visually lowering the scale of the stadium.
The redevelopment doubled the size of the roof to around 45,000 square metres and extended it far further over the seating bowl.

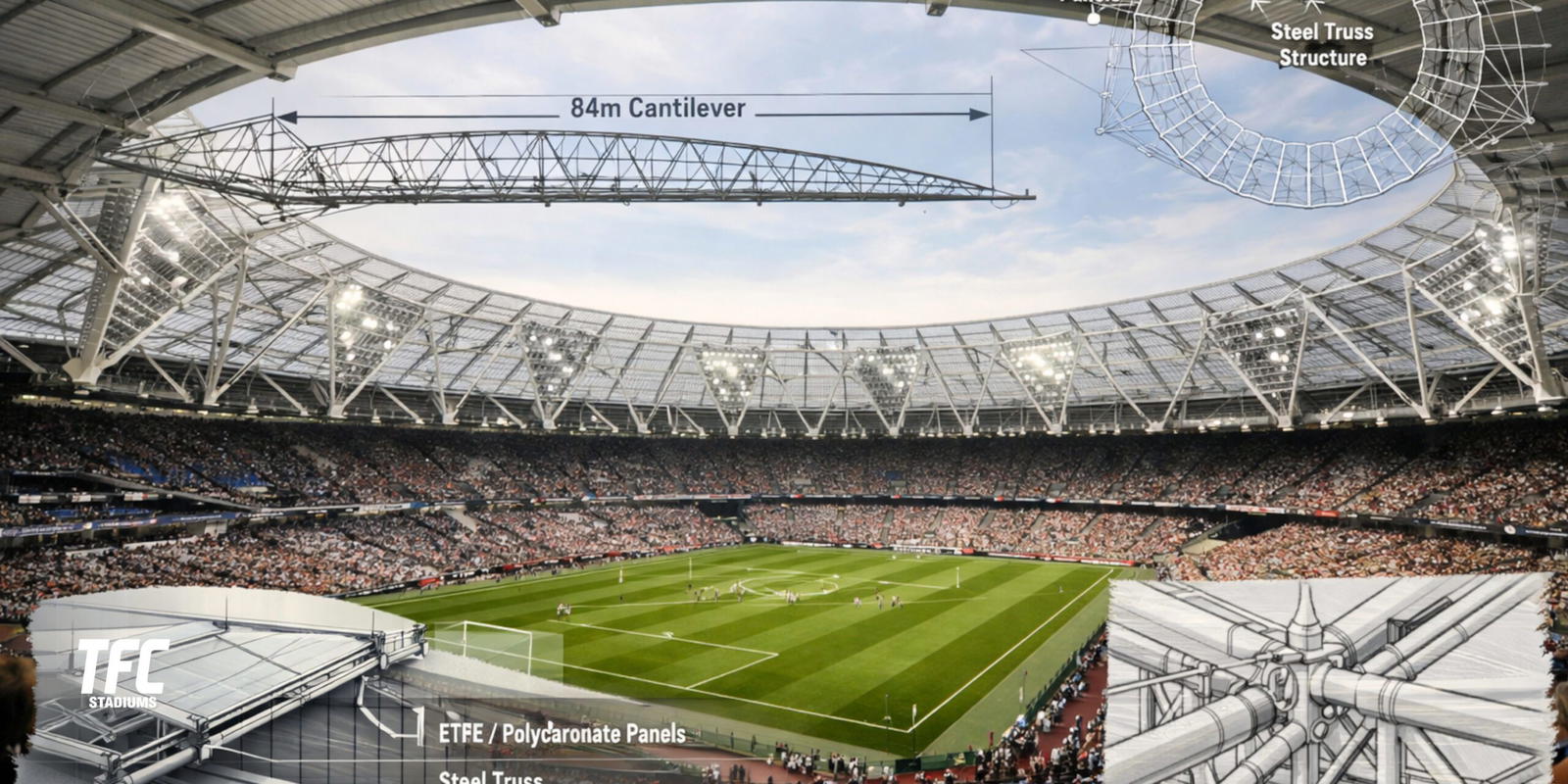

The Main Design: A Giant Cantilever Roof
The new London Stadium roof is essentially a huge cantilever structure. In simple terms, that means it projects over the seating without needing support columns that would block spectators’ views.
At its deepest point, the roof reaches around 84 metres from the back of the stand towards the pitch. When completed, it became one of the longest cantilevered stadium roofs in the world.
The design uses:
- 8 kilometres of steel cable
- More than 100 large steel rafters
- Nearly 10,000 roof panels
- A strengthened ring of support around the top of the stadium
Rather than building an entirely new stadium, engineers kept much of the original Olympic structure and strengthened it. Existing V-shaped columns had to be reinforced, while the outer compression ring around the stadium was upgraded to carry the extra weight.
That choice saved money and preserved the recognisable shape of the Olympic venue, although it also made the engineering considerably more difficult. It is always easier to start from scratch than to convince an existing structure to carry several thousand extra tonnes without complaining.
Materials and Roof Panels
The roof is split into two distinct sections.
The rear section is solid and insulated, giving protection from wind and rain. The front section, closer to the pitch, uses translucent panels. These allow natural light to reach the pitch while still keeping spectators covered.
Part of the extension uses ETFE and lightweight transparent polycarbonate materials. These are far lighter than glass and reduce the amount of structural support needed.
The translucent section matters for more than appearance. A completely solid roof would cast too much shadow over the grass and affect pitch quality. The transparent panels allow sunlight through while maintaining the sense of enclosure.
There is also an unexpected visual benefit. On cloudy afternoons, which in east London is not exactly a rare event, the roof catches and diffuses the light across the stadium rather than leaving half the pitch looking like it belongs in a different postcode.
How the Roof Changed the Atmosphere
This is where the redesign becomes far more interesting.
Before redevelopment, the stadium felt vast and hollow. Noise drifted upwards and disappeared. During the Olympics that worked well enough because athletics crowds behave differently. Football supporters, on the other hand, generally prefer their chants to stay in the building rather than head off towards Stratford station.
The deeper roof now reflects crowd noise back towards the pitch and lower tiers. West Ham’s home support is still further from the action than at older grounds such as Upton Park, but the roof has made a substantial difference.
The effect is most noticeable during big European nights or derby matches. The enclosed sound creates a louder, tighter atmosphere than the original bowl ever managed.
Acoustically, London Stadium now sits somewhere between a traditional enclosed football ground and an open Olympic arena. It is not quite as intense as Anfield or Selhurst Park, but it is far more imposing than it was in 2012.
Roof Design Head-to-Head
| Stadium | Roof Type | Maximum Reach | Covers Every Seat? | Main Strength |
|---|---|---|---|---|
| London Stadium | Cantilevered steel and translucent roof | 84m | Yes | Strong acoustics and full coverage without support pillars |
| Wembley Stadium | Partially retractable roof supported by giant arch | Approx. 52m | Mostly | Iconic design and flexible event use |
| Tottenham Hotspur Stadium | Fully enclosed cantilever bowl roof | Approx. 46m | Yes | Exceptional atmosphere and crowd noise |
| Emirates Stadium | Continuous bowl roof | Approx. 35m | Yes | Clean sightlines and consistent shelter |
| Old Trafford | Multi-section cantilever roof | Varies | Mostly | Traditional feel, though corners remain exposed |
London Stadium’s roof has a greater reach than most major football venues in England. What it lacks in architectural glamour, it makes up for in scale and engineering ambition.
Wembley’s arch is instantly recognisable from miles away. Tottenham Hotspur Stadium feels sharper and more intimate. London Stadium, by contrast, has a roof designed primarily to solve a problem. Oddly enough, that gives it its own character.
The Hidden Structural Challenge
One of the least visible but most impressive parts of the project was the strengthening work.
The original Olympic Stadium had not been designed to carry such a massive roof permanently. Engineers had to:
- Reinforce the V-columns around the bowl
- Strengthen the compression truss
- Install new steelwork beneath the roofline
- Rebalance loads across the existing structure
The final roof weighs several times more than the original version.
Four enormous cranes were used to lift major sections into place, including the lighting rigs that now hang beneath the roof. These floodlight structures are themselves striking. The triangular Olympic lighting towers were inverted and suspended below the new roof, giving a subtle nod to the stadium’s Olympic past.
It is one of the few genuinely elegant touches in a venue that has often been accused of feeling too functional.
Does the Roof Fully Solve London Stadium’s Problems?
Not entirely.
The roof makes the stadium louder, more comfortable and visually more enclosed. It solves the issue of exposed seating and significantly improves the experience on rainy days.
What it cannot solve is the stadium’s fundamental shape. The athletics track still leaves supporters further from the pitch than in a purpose-built football ground. Even the best roof in the world cannot move the front row twenty metres closer.
That is why opinions on London Stadium remain divided.
Critics still see it as an adapted Olympic venue pretending to be a football ground. Supporters of the redesign argue that the roof has done about as much as any architect realistically could without demolishing the entire place and starting again.
Frankly, both sides have a point.
The Future of the Roof
The next stage of the stadium’s roof may have less to do with football and more to do with energy.
Recent upgrades include plans for solar membrane panels across parts of the roof structure. These are intended to generate enough power to support many of the stadium’s major events.
If successful, London Stadium could become one of the first major British sports venues where the roof does more than keep supporters dry and make their chants louder. It could also help power the floodlights, scoreboards and event infrastructure.
There is something fitting about that. The roof began life as a compromise, became a rescue mission for an awkward stadium, and may yet turn into one of the venue’s most useful features.
Final Verdict
London Stadium’s roof is not beautiful in the way Wembley’s arch is beautiful, or in the way the sweeping bowl at Tottenham feels deliberately designed for football.
What it is, however, is remarkably clever.
It transformed a partly open Olympic arena into a far more convincing modern stadium. It covers every seat, improves the atmosphere, preserves sightlines and keeps enough daylight on the pitch to maintain the grass.
Most importantly, it solved a problem that many thought could not be solved.
London Stadium may never feel like the old Boleyn Ground. No roof could manage that. But without this one, the place would feel considerably colder, emptier and far more exposed. In east London, that is a dangerous combination.
