Wembley Stadium is not just the national stadium of England but one of the most iconic football grounds in the world. At the heart of its identity is the massive steel arch that dominates the London skyline. Spanning 315 metres and rising 133 metres above the pitch, the Wembley Arch is both an engineering solution and a design statement. This article explores how it was conceived, built, and what it represents architecturally.
The Need for a New Structural Concept
The original Wembley, with its famous Twin Towers, was a cherished landmark. But by the late 20th century, it was outdated and ill-suited for the demands of modern international events. When plans for a new stadium began to take shape, there was a clear intention: the replacement must be technologically superior and visually distinctive.
The key challenge was the roof. Designers needed to provide unobstructed views for 90,000 spectators, which meant doing away with internal columns or supports. A conventional truss system would have obstructed sightlines or added bulk. The solution came in the form of a single arch.

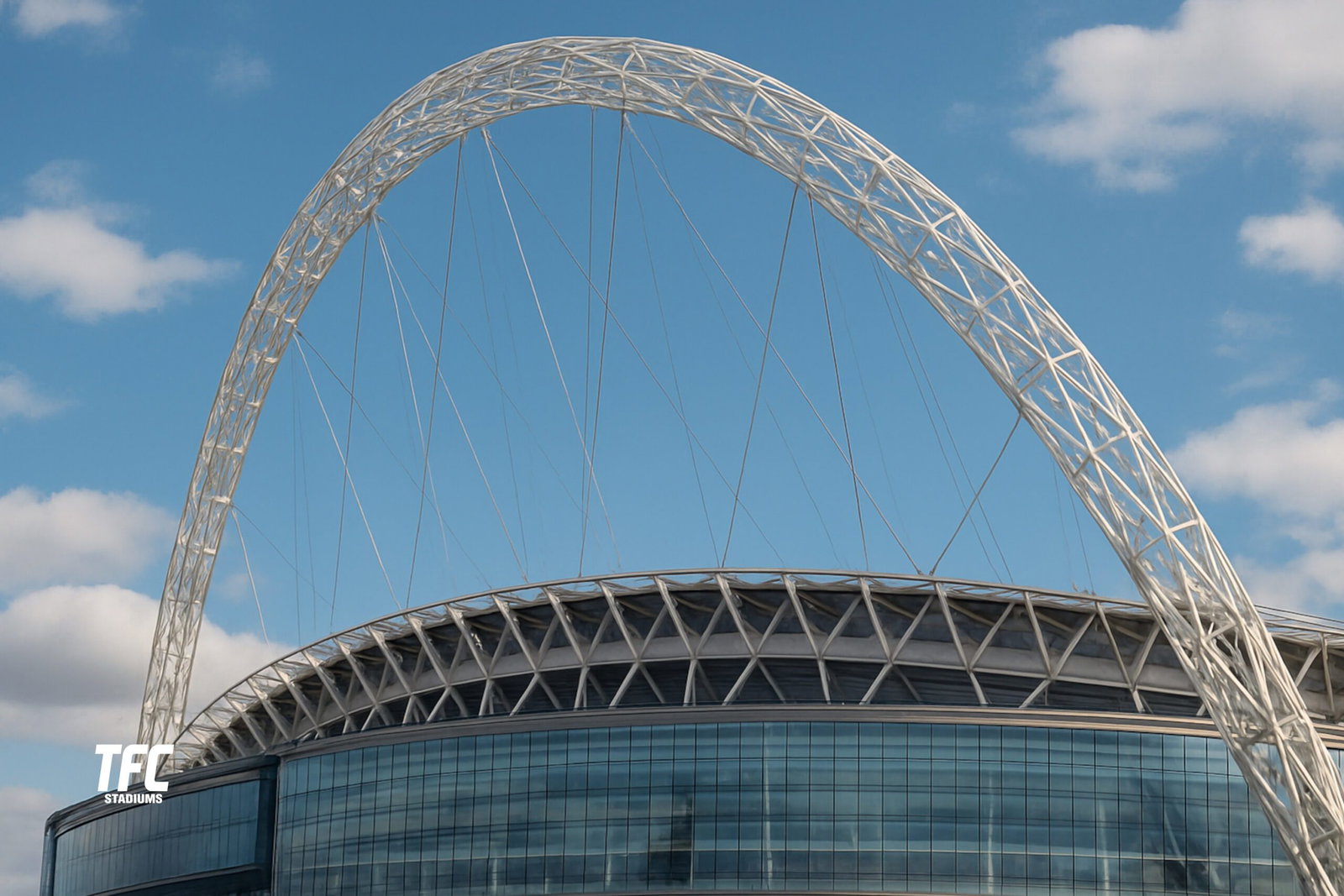

Design and Engineering
The Wembley Arch was designed by architects Foster + Partners in collaboration with structural engineers from Mott MacDonald. Fabricated by Cleveland Bridge and installed by Hollandia, the arch was intended to act as the primary support for the stadium’s north and south roof sections.
- Height: 133 metres
- Span: 315 metres
- Weight: Over 1,750 tonnes
- Tilt: Leans 22 degrees from the vertical
Suspended from the arch are 68 steel cables, which hold up over 7,000 tonnes of roof structure. The design avoids the need for roof columns, creating a clear view from every seat in the house. The roof is partially retractable to help pitch maintenance and accommodate a wide variety of events.
The arch itself was constructed on-site and lifted into place over several weeks. It is hollow, with internal ladders and maintenance access. The complexity of the lift required one of the most significant engineering operations ever attempted on a stadium.
Architectural Impact
Visually, the arch became the signature of the new Wembley, replacing the silhouette of the old towers with a modern symbol of British engineering. It is visible from many points across London, especially at night when it is lit for events.
More than a structural component, the arch functions as a beacon and branding tool. It signals not only where Wembley is but also what it represents: ambition, scale, and national pride.
Sustainability and Materials
The arch and roof structure were designed with durability and long-term maintenance in mind. Steel was chosen for its strength and recyclability, while careful attention was paid to the logistics of transport and installation. The use of tension and compression in the design allowed the materials to perform efficiently, reducing excess mass and material waste.
TFC Stadiums takeaway
Since its completion in 2007, the Wembley Arch has become one of the most recognisable stadium features in the world. It stands not only as a structural achievement but also as a visual shorthand for English football.
The success of the arch helped set a new precedent in stadium architecture, proving that bold design and engineering can serve function without compromising form. In that respect, it continues to inspire stadium projects around the globe.
